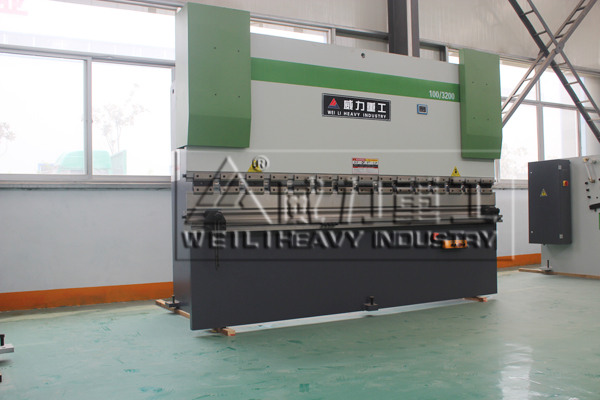

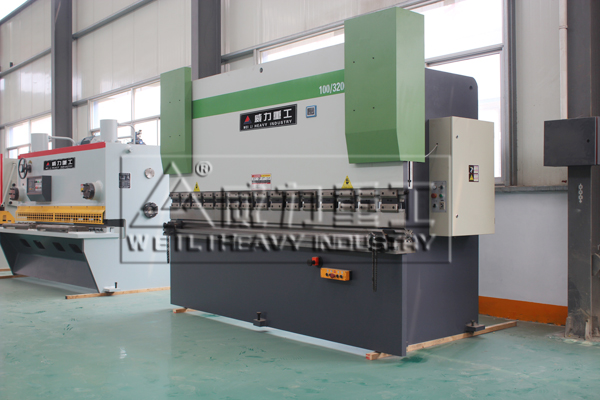

【產品描述】：液壓折彎?rùn)C(jī)包括支架、工作臺和夾緊板，工作臺置于支架上，工作臺由底座和壓板構成，底座通過鉸鏈與夾緊板相連，底座由座殼、線圈和蓋板組成，線圈置于座殼的凹陷內，凹陷頂部覆有蓋板。 使用時由導線對線圈通電，通電后對壓板產生引力，從而實現對壓板和底座之間薄板的夾持。由于采用了電磁力夾持，使得壓板可以做成多種工件要求，而且可對有側壁的工件進行加工
| 型號 | 名稱 |
公稱壓力 KN |
最大可折板長 mm |
立柱間距 mm |
喉口深度 mm |
滑塊最大行程 mm |
工作臺與滑塊最大開啟高度 mm |
行程次數 min |
主電機功率 Kw |
最高工作壓力 Mpa |
外形尺寸 mm |
| 30T-1600 | 300 | 1600 | 1240 | 150 | 85 | 180 | 20 | 3 | 16 | 1620x800x1600 | |
| 30T-2000 | 300 | 2000 | 1640 | 150 | 85 | 180 | 20 | 3 | 16 | 2020x800x1600 | |
| 40T-2500 | 400 | 2500 | 2040 | 200 | 110 | 340 | 10 | 4 | 20.5 | 2500x1300x2000 | |
| 50T-2500 | 500 | 2500 | 2040 | 200 | 110 | 340 | 10 | 4 | 20.5 | 2500x1500x2120 | |
| 63T-2500 | 630 | 2500 | 2040 | 200 | 110 | 360 | 12 | 5.5 | 20.5 | 2500x1500x2250 | |
| 63T-3200 | 630 | 3200 | 2500 | 200 | 110 | 360 | 12 | 5.5 | 20.5 | 3200x1500x2300 | |
| 100T-2500 | 1000 | 2500 | 1900 | 320 | 120 | 370 | 15 | 7.5 | 25 | 2500x1600x2400 | |
| 100T-3200 | 1000 | 3200 | 2600 | 320 | 120 | 370 | 15 | 7.5 | 25 | 3200x1600x2500 | |
| 100T-4000 | 1000 | 4000 | 3200 | 320 | 120 | 370 | 12 | 7.5 | 25 | 4000x1600x2500 | |
| 125T-2500 | 1250 | 2500 | 1900 | 320 | 120 | 370 | 12 | 7.5 | 25 | 2500x1600x2400 | |
| 125T-3200 | 1250 | 3200 | 2600 | 320 | 120 | 370 | 12 | 7.5 | 25 | 3200x1600x2600 | |
| 125T-4000 | 1250 | 4000 | 3200 | 320 | 120 | 370 | 12 | 7.5 | 25 | 4000x1600x2600 | |
| 160T-2500 | 1600 | 2500 | 1850 | 320 | 200 | 460 | 10 | 11 | 25 | 2500x1800x2590 | |
| 160T-3200 | 1600 | 3200 | 2460 | 320 | 200 | 460 | 10 | 11 | 25 | 3200x1800x2690 | |
| 160T-4000 | 1600 | 4000 | 3260 | 320 | 200 | 460 | 10 | 11 | 25 | 4000x1800x2690 | |
| 160T-6000 | 1600 | 6000 | 4800 | 320 | 200 | 460 | 10 | 11 | 25 | 6000x1900x3200 | |
| 200T-3200 | 2000 | 3200 | 2460 | 320 | 200 | 460 | 10 | 15 | 25 | 3300x1800x2690 | |
| 200T-4000 | 2000 | 4000 | 3260 | 320 | 200 | 460 | 10 | 15 | 25 | 4000x1800x2690 | |
| 200T-6000 | 2000 | 6000 | 4800 | 320 | 200 | 460 | 10 | 15 | 25 | 6000x2070x3300 | |
| 250T-3200 | 2500 | 3200 | 2400 | 400 | 250 | 530 | 10 | 18.5 | 20.5 | 3300x2140x3250 | |
| 250T-4000 | 2500 | 4000 | 3200 | 400 | 250 | 530 | 10 | 18.5 | 20.5 | 4000x2140x3250 | |
| 250T-6000 | 2500 | 6000 | 4800 | 400 | 250 | 530 | 10 | 18.5 | 20.5 | 6000x2140x3400 | |
| 300T-3200 | 3000 | 3200 | 2400 | 400 | 250 | 530 | 10 | 22 | 20.5 | 3300x2100x3100 | |
| 300T-4000 | 3000 | 4000 | 3200 | 400 | 250 | 530 | 10 | 22 | 20.5 | 4000x2100x3250 | |
| 300T-6000 | 3000 | 6000 | 4800 | 400 | 250 | 530 | 10 | 22 | 20.5 | 6000x2100x3540 | |
